DR3624
DISCONTINUED AND REPLACED BY TR
SERIES
click thumbnail image to enlarge
3600W Modified Sine Wave Inverter
with integral battery charger
The Trace DR Series™ inverters have plenty of power to run microwave ovens, refrigerators, vacuum cleaners and power tools. They were originally designed as a standby power system to keep lights and refrigerators going in Caribbean countries that are plagued with numerous power outages. Their powerful battery charger quickly charges batteries and holds them in float condition. When the power goes off, the inverter goes on, keeping everything running.
The DR inverters are available for 12 volt systems in 1500 and 2400 watt models. The 24 volt versions are available in 1500, 2400 and 3600 watt models which have even greater surge capabilities.
The output is 120 VAC, but with the optional stacking cable, two units of the same input voltage can be connected in series for up to 7200 watts of 120/240 VAC power, allowing the pair to operate large 240 volt appliances like pumps as well as typical 120 volt appliances.
ETL listed to UL standards.
Specs
| Nominal DC Input Voltage | 24 volts |
| AC Output Voltage (RMS) | 120 VAC |
| Nominal Frequency | 60 Hz |
| Continuous Power (@ 25C) | 3600 watts |

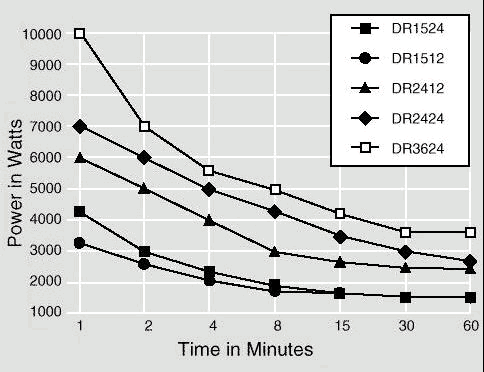

| Maximum AC Surge Output (RMS) | 12000 watts |

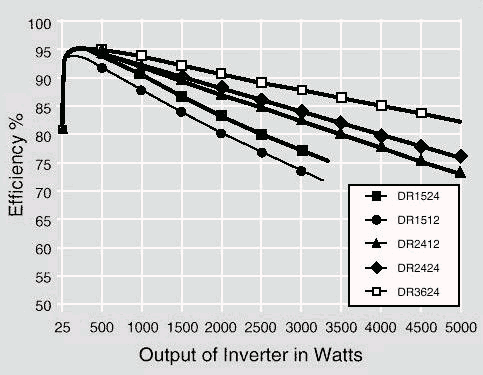

| Efficiency (peak) | 94% |
| Automatic AC Transfer Relay | 35 amps |

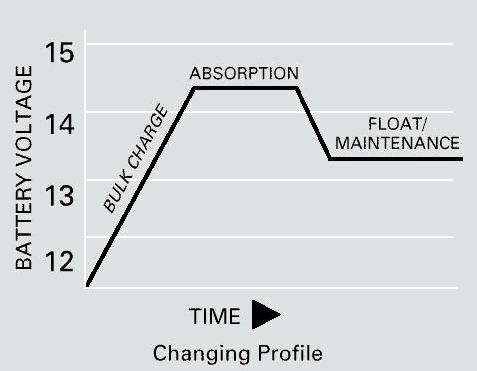

| Charging Rate | 0 to 70 amps adjustable, 3 stage, 8 profiles, 2 equalize modes |
DC Input Requirements |
|
| Search Mode | 0.030 amps |
| On Mode (no load, idle) | 0.500 amps |
| At Full Rated Power | 210 amps |
| Nominal DC Input Voltage | 21.6 to 31.0 volts |
AC Output Characteristics |
|
| AC Output Wave Form | modified sine wave |
| Voltage Regulation | +5% |
| Frequency Regulation | +0.04% |
| Load Sensing Range | 5 to 100 watts |
Options |
|

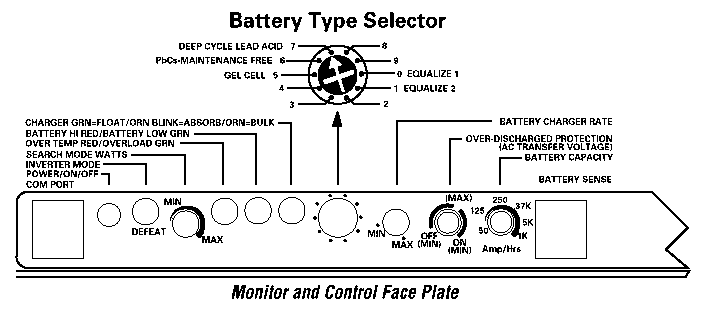

| Remote Control | yes, on off & LED status |
| Stacking Interface | yes |
| Battery Temperature Compensation Sensor | yes |
| Conduit Box | yes |
| DC Disconnect Breaker | no |
| DC Battery/Inverter Cables | no |
Physical & Environmental |
|
| Enclosure Type | indoor |
| Temperature Range | 0 to 50C |
| Dimensions - Inverter Only | 8.5 x 7.25 x 21 inches |
| Mounting | shelf or wall |
| Weight - Inverter Only | 45 lbs. |
