POWERSTAY AUTOMATIC TRANSFER SYSTEM

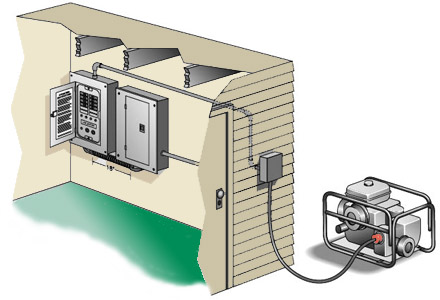

Click thumbnail image
above to enlarge

PowerStay^TM Automatic Power Transfer System
from Gen/Tran^®

The PowerStay™ Automatic Power Transfer System, used in conjunction with a standby portable generator, provides a convenient way to maintain power in a home or business during a power outage. The PowerStay™ system senses when utility power shuts off, triggers a permanently installed generator to start, and once the generator reaches a nominal output level, the selected household circuits are transferred to the generator load according to the priority assigned at installation. This system is designed for use with gas-powered, automatic choke engines with electric/remote start kits, as well as propane, natural gas or diesel-powered generators up to 30 kilowatts.

SMART FEATURES - microprocessor based

• Safe – Prevents generator backfeed into utility power, like all other Gen/Tran
  transfer switches.
• Automatic switching between utility and generator power – When the system
  senses partial or total loss of electricity for 30+ seconds, it automatically starts
  the generator (equipped with appropriate remote starting capabilities), and transfers
  the loads according to priority assigned upon installation. When utility power is
  restored consistently for one minute, the system automatically disconnects the
  electrical circuits in your home or business from generator power, reconnects them
  to your utility power, and cools down the generator.
• Smart startup/shutdown – Limits rapid intermittent start-up and shutdown,
  prolonging generator life. -Waits 30 seconds after sustained power loss to start up
  generator -Waits 30 seconds to begin sequenced transfer of loads to the generator
  -Once power is restored, waits one minute to re-transfer loads back to utility.
  - 30 seconds after re-transfer, completes generator shutdown.
• “Break before make” relays – Allow each household circuit to be taken off the utility
  line when connection to the generator is made, ensuring that power is not sent to a
  designated circuit from two different sources at the same time.
• Intelligent load-shedding – In generator mode, the system automatically sheds less
  important circuits as loading increases on higher priority circuits, which allows a larger
  number of loads – some intermittent – to be supported without nuisance tripping or
  having to invest in a larger generator.
• Built-in battery charger – Charges your generator battery between uses so it's ready
  when you need it.
• Programmable generator exerciser – Tests generator every 14 days at the selected
  time of day to maintain a healthy generator.
• Generator usage monitor – Tracks total run time to help gauge fuel consumption.
• Programmable alarm system – Can be programmed at installation to sound an alarm in
  case of expected low fuel levels.
• Flexible – Accommodates gas, propane, LP gas and diesel generators from 3500 watts
  (14 amp) to 30KW (125amp). Appropriate for any single phase 125/250V electrical
  application.
• Easy installation – Similar to Gen/Tran^® manual transfer switches.



POWERSTAY™ CONTROL PANEL DISPLAYS

• Low battery warning
• Real-time voltage readings for both the utility line input and the generator line input
• Real-time generator current readings
• Accumulated generator run time (both since last reset and since initial activation of
  the transfer switch, if desired and so programmed)
• Transfer switch overload current level settings



POWER UP IMPORTANT APPLIANCES

• Furnace/HVAC
• Refrigerator/Freezer
• Security System
• Well Pump
• Lights
• Garage Door Opener
• Office Equipment
• Water Heater
• Range and kitchen circuits



STANDARD CONFIGURATIONS:

Choose from two PowerStay™ series that offer flexibility to match virtually any requirement. Custom configurations are available. Each PowerStay™ system is housed in a NEMA Type 1 enclosure, suitable for flush or surface mounting indoors.

Series Model click underlined model at right ----->>>> for details and ordering	1000	1500	3000	3500
Number of Circuits	8	8	16	16
Max. Generator Capacity	12.5 kW	12.5 kW	30 kW	30 kW
Number of 15 amp 1-pole breakers	4	2	4	4
Number of 20 amp 1-pole breakers	4	4	6	4
Number of 20 amp 2-pole breakers	0	0	1	1
Number of 30 amp 2-pole breakers	0	1	1	2
Number of 50 amp 2-pole breakers	0	0	0	1

IMPORTANT! This product must be installed by a professional electrician familiar with residential or commercial electrical wiring and building codes, and this system must be installed in accordance with all local and national ordinances.
