This page provides additional information concerning the installation and operation of the inlet shutter motor. Follow the installation instructions carefully that are provided with the PowerShelter Kit. Pay particular attention to the following...
-
When mounting the arm on the motor shaft make sure the two set screws seat tightly on the two flats of the shaft.
-
Adjust the chain length so that when the shutter is open the arm is approximately horizontal. When the return spring closes the shutter the arm should be approximately vertical.
The motor operator is designed to stay energized continuously to keep the shutter open.

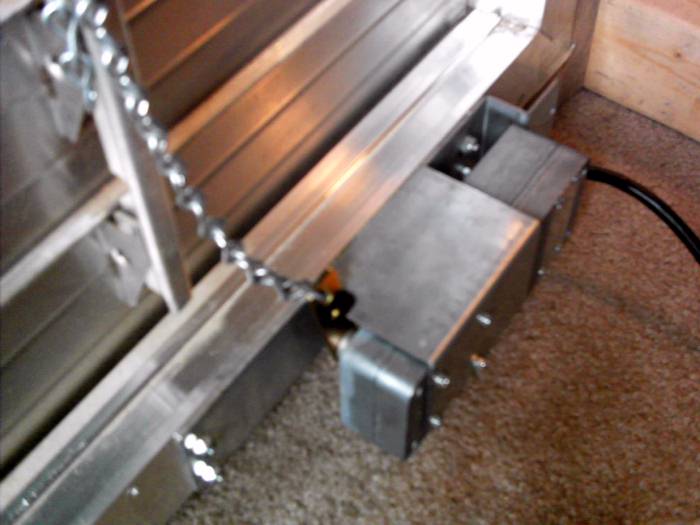

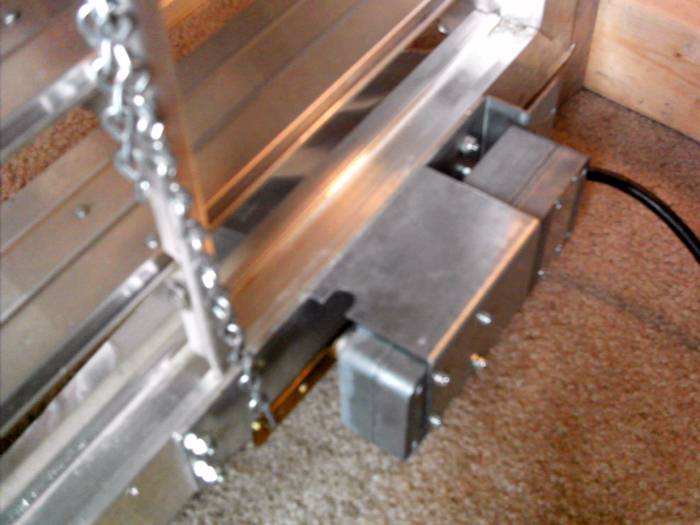

The photos below show a proper installation with the shutter closed and open.
click thumbnail images above to enlarge
To see a video of the motor in action click the .wmv file below...
If you have further questions send us an email message.
