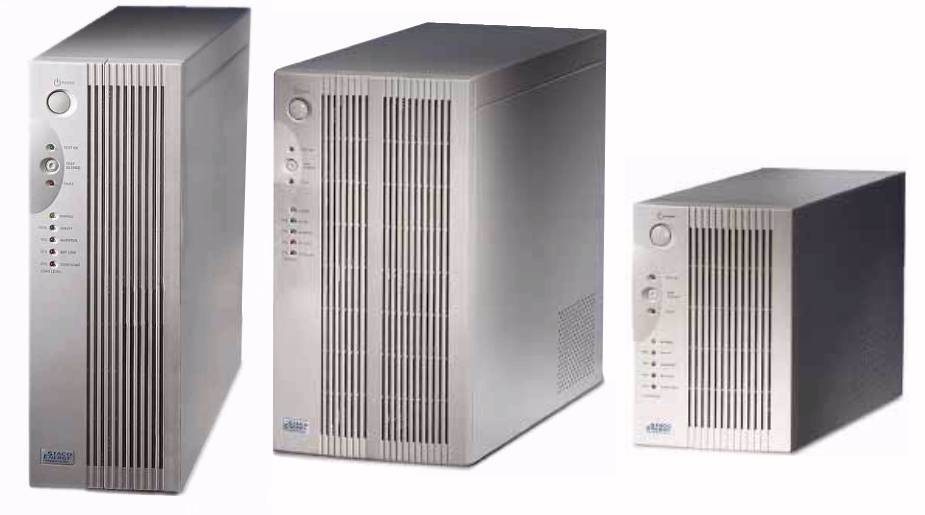

UniStar III UPS System
1000-3000VA, 120Vac
tower mounting model
High Quality, Low Cost Single Phase UPS Online, Double-Conversion
Three-year warranty
Benefits:
The UniStar III provides reliable protection against:
- Blackouts
- Voltage fluctuations
- Frequency fluctuations
- Harmonics, electrical noise, and brownouts.
- Almost unlimited backup run times with optional extended runtime battery cabinets
Features:
- Tower to Meet Your Installation Needs
- Easy Plug and Play Design (1 & 2 kVA Units)
- User Friendly Control Panel
- Precision Power Conditioning
- Smart Battery Management
- Remote Communications and Monitoring
- Optional External Battery Packs for Extended Runtime
This sophisticated, yet affordable UPS offers online technology and a wide input voltage range to provide a constant, clean, steady sinewave to equipment, even without going to battery mode.
The user friendly display clearly communicates the UPS status, making diagnostics a trouble-free task.
The included software also gives you the ability to remotely test major operating functions, access the UPS functions via the internet, and receive SMS alerts when specific events occur.
It is compatible with Novell NetWare, Linux, Free BSD, Windows 95/98, Windows NT, Windows XP, and other Windows operations.
An optional adapter card can give you the ability to run the UPS through your local network.
UPS Systems
Prices last updated 7/6/2013
Shipping weights start at 33 lbs.
These items normally ship in approximately 1 week or less.
Item |
Description |
VA/Watts |
AC Voltage |
Mounting | Price $ US |
Add to Shopping Cart |
SC10001T |
UPS - UniStar III series, 7+ min internal battery backup at FL, 80-140V input, 50/60Hz |
1000/700 | 120V pure sine | tower | $453 | |
SC20001T |
UPS - UniStar III series, 7+ min internal battery backup at FL, 80-140V input, 50/60Hz |
2000/1400 | 120V pure sine | tower | $720 | |
SC30001T |
UPS - UniStar III series, 6+ min internal battery backup at FL, 80-140V input, 50/60Hz |
3000/2100 | 120V pure sine | tower | $1,032 |
UPS Accessories
Item |
Description |
Works With | Price $ US |
Add to Shopping Cart |
SC-BP1000-00903NT |
Extended Runtime Battery Pack - 4 max |
UniStar III 1000VA UPS system | $453 | |
SC-BP2000-01803NT |
Extended Runtime Battery Pack - 4 max |
UniStar III 2000VA UPS system | $681 | |
SC-BP3000-01602NT |
Extended Runtime Battery Pack - 4 max |
UniStar III 3000VA UPS system | $632 | |
SC-BP3000-23204CT |
Extended Runtime Battery Pack - HIGH capacity, 4 max, with 200W charger |
UniStar III 3000VA UPS system | $1,204 | |
SC-SNMP1 |
Internal SNMP Kit - card, MIB software, cable, manual |
UniStar III, C, P UPS systems | $239 | |
SC-USB |
USB Interface Card |
UniStar III and C UPS systems | $72 | |
SC-OPTO |
DB9 (AS/400) Dry Contact Card - internal opto-coupler |
UniStar III UPS systems | $89 | |
SC-RELAY |
Internal Relay Contact Card - true relay 10 pin |
UniStar III and C UPS systems | $92 | |
SC-UNIX |
UPSilon for SCO Unix, SCO Xenix, SCO UnixWare, DEC OSF/1, DEC ULTRIX, IBM AIX, HP-UX, SGI IRIX, Sun OS, Sun Solris, Linux, Free BSD, Fujitsu DC/90 ICL, Motorola AIX, Motorola SVR4 etc. |
UniStar III and C UPS systems | $223 |
Battery Runtimes
(minutes estimated)
VA Rating | Standard
Internal Battery Only 25%/50%/75%/100% load |
with
External Battery Packs 25%/50%/75%/100% load |
|||
Quantity 0 | Quantity 1 | Quantity 2 | Quantity 3 | Quantity 4 | |
1000 | 45/18/10/7 | 280/120/70/49 | 550/238/143/100 | 840/365/225/155 | 1150/505/400/215 |
2000 | 45/18/10/7 | 280/120/70/49 | 550/238/143/100 | 840/365/225/155 | 1150/505/400/215 |
3000 | 40/16/9/6 | 170/70/40/25 | 320/135/80/40 | 480/205/125/85 | 650/280/170/120 |
320/135/80/55* | 650/280/170/120* | 1005/440/270/190* | 1375/605/370/260* |
* SC-BP3000-23204CT high capacity battery pack with 200W charger
