Xtreme P91
Online UPS Systems
Click thumbnail image above to enlarge

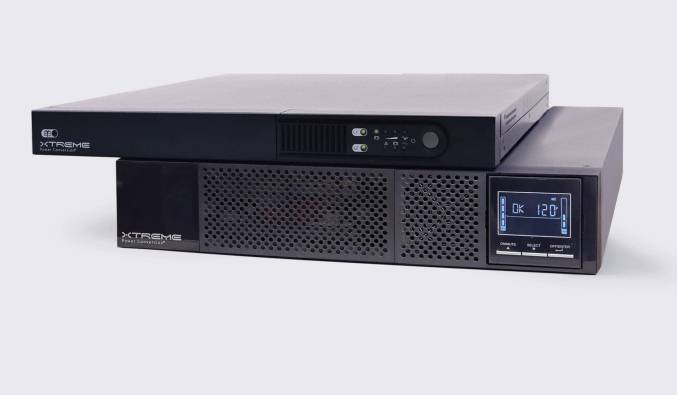

P91 Series UPS System
1000-3000VA/1000-2880W, 120Vac
tower/rack mounting model
P91 1-3kVA Online UPS
Premium power protection for mission critical applications
Protect your equipment from blackouts, brownouts, sags, surges, and noise interference with the Xtreme Power P91, a true online UPS that delivers continuous high-quality AC power to servers and network equipment with no break when transferring to battery. The P91 offers the lowest total cost of ownership by cutting energy costs and lowering heat output.
Features
- High output power factor
- Up to 98% efficient operation
- Extended battery packs available for 2U models
- Multiple communications capability
- Hot swappable battery design
- Programmable outlet groups (2U)
- $50,000 load protection policy
- UL, cUL, RoHS, FCC Class B (1000VA (2U), 1500VA), FCC Class A (1000VA (1U), 2000VA, 3000VA, TAA compliant (UPS only)
- 3 years electronics, 3 years battery warranty (USA and Canada)
UPS Systems
Prices last updated 7/13/2023
Shipping weights start at 30 lbs.
These items normally ship in approximately 2 weeks or less.
Item |
Description |
VA/Watts |
AC Voltage |
Mounting | Price $ US |
Add to Shopping Cart |
P91-1000 |
UPS - P91 series, 3 min internal battery backup at FL 50/60Hz |
1000/1000 | 120V pure sine | rack/tower | $903 |
|
P91-1500 |
UPS - P91 series, 3 min internal battery backup at FL 50/60Hz |
1500/1450 | 120V pure sine | rack/tower | $1,156 | |
P91-2000 |
UPS - P91 series, 3 min internal battery backup at FL 50/60Hz |
2000/1930 | 120V pure sine | rack/tower | $1,477 | |
P91-3000 |
UPS - P91 series, 3 min internal battery backup at FL 50/60Hz |
3000/2880 | 120V pure sine | rack/tower | $1,949 |
UPS Accessories
Item |
Description |
Works With | Price $ US |
Add to Shopping Cart |
P91-BP36 |
Battery Pack - 36Vdc 2U |
P91 series 1500 UPS systems | $759 |
|
P91-BP36E |
Battery Pack - 36Vdc 2U |
P91 series 1500 UPS systems | $1,060 |
|
P91-BP48 |
Battery Pack - 48Vdc 2U |
P91 series 2000 UPS systems | $881 |
|
P91-BP72 |
Battery Pack - 72Vdc 2U |
P91 series 3000 UPS systems | $1,112 |
|
P90-RAIL |
4- post rail kit |
P91 series UPS systems | $118 |
|
XPC-2PRAIL |
2-Post Rail Kit; Rated for 125 lbs |
P91 series UPS systems | $93 |
|
XPC-2POSTL | 2-Post Shelf Kit; Rated for 150 lbs | P91 series UPS systems | $144 |
|
P90-FRMB | Front Rackmount Bracket | P91-1000, 1500, 2000, 3000 UPS systems | $31 |
|
SNMP-2PV3 | Two Port Internal SNMP Card | P91 series UPS systems | $297 |
|
SNMP-EMPV2 | Environmental Monitoring Sensor | P91 series UPS systems | $187 |
|
XBDM-1015LV | Bypass Distribution Module - 15A 120V, NEMA 5-15P line cord, (10)NEMA 5-15R output receptacles | XPRT+XVRT+P90+P90L series 1000VA & 1500VA UPS systems | $289 | |
XBDM-1020LV | Bypass Distribution Module - 20A 120V, NEMA 5-20P line cord, (10)NEMA 5-20R output receptacles | XPRT+XVRT+P90+P90L series 2000VA UPS systems | $322 | |
XBDM-1030LV | Bypass Distribution Module - 30A 120V, NEMA L5-30P line cord, (10)NEMA 5-20R output receptacles | XPRT+XVRT+P90+P90L series 3000VA UPS systems | $493 |
Battery Runtimes
(minutes estimated at 50% load / 100%
load)
Runtimes will vary based on battery condition, age, cycles, and ambient temperature.
VA Rating | Standard Internal Battery Only | with External Battery Packs | |||||
--- | BP Model | qty 1 BP | qty 2 BP | qty 3 BP | qty 4 BP | qty 5 BP | |
1000 | 6/3 | n/a | n/a | n/a | n/a | n/a | n/a |
1500 | 10/3 | BP36 | 42/17 | 84/33 | 120/51 | 157/72 | 199/93 |
1500 | 10/3 | BP36E | 84/33 | 157/72 | 244/112 | 339/146 | n/a |
2000 | 10/3 | BP48 | 42/17 | 84/33 | 121/51 | 157/72 | 200/93 |
3000 | 10/3 | BP72 | 42/17 | 84/33 | 121/52 | 158/73 | 201/94 |
