ATS1001D, ATS1001R,
ATS2001D, ATS2001R, ATS2002R
 |
 |
 |
 |
 |
| ATS1001D | ATS1001R | ATS2001D | ATS2001R | ATS2002R |
| Click thumbnail images to enlarge | ||||
 |
 |
 |
 |
 |
| control module display | LSM | PP30 & PP50 | Ovation brochure | Ovation specs |
Automatic Transfer Switch
with integral residential load center
100 amp & 200 amp, 120/240V, 1-phase
generator exerciser, load management circuits
The Ovation™ Series Automatic Transfer Switches, used in conjunction with a standby generator, provide a convenient way to maintain power in a home or business during a power outage. This automatic transfer switch system senses when utility power shuts off, triggers a permanently installed generator to start, and once the generator reaches a nominal output level, the household circuits are transferred to the generator. However, unlike most other switches, this product also has the option of adding load management control for up to six branch circuits. This can reduce the size and cost of the required generator.
Click for video describing the Ovation system.
Key Features of the Ovation™ Series ATS systems include:
* Combines a service-entrance rated load center with and automatic transfer switch for faster,
simplified installation and reduced labor costs
* All models are Service Entrance rated at no additional cost
* Can be installed as the main load center OR a subpanel - Ideal for new construction or retrofits
* Compatible with virtually ANY stationary generator up to 50 kW
(See Support section for wiring diagrams for popular generator brands)
* Listed with interchangeable type branch circuit breakers from Siemens (QAF, QFH, QE, QEH, QFP, QNR, QNRH, QP,
QF, QPF, QPH, QT, QSAP, HQP), Square D (HOM), Cutler-Hammer (BR, BD, BQ, GFC) and GE (THQL, THHQL)
* User interface with LED indicators standard on all models
* Programmable exercise intervals - from 0, 7, 14, 28 days (with or without load) to maintain a healthy generator
and significantly reduce fuel costs over time
* Available in 100 amp and 200 amp configurations, in indoor and outdoor enclosures
* All models include subfeed lugs to easily support additional panels
* Adjustable generator start-up delay from 5 seconds to 60 minutes, in 15 minute increments,
to comply with certain ordinances.
* Microprocessor-controlled, open transition, circuit breaker-based switching with manual override
* Optional PowerPause™ Load Management modules and Relay Boxes available
* For single phase (125/250V) 60 Hz or 50 Hz applications
* UL Listed
PowerPause™ Load Management:
* Reduces your generator investment by as much as 40%
* Optimizes the capacity of a moderately sized generator
* Eliminates the risk of overloading the generator and avoids nuisance tripping
* Allows you to enjoy many household conveniences when generator capacity is available
* Each Ovation™ Series ATS accepts up to 3 PowerPause™ Load Management Modules
(Model LSM, sold separately) to control up to 6 x 240V circuits or 12 x 120V circuits of up to 5 amps each.
* This feature also supports Load Lockout to disconnect selected loads (like air conditioning) before transfer
to standby to avoid generator overload
PowerPause™ Relay Boxes (for loads over 5 amps):
These relay boxes are used in conjunction with the PowerPause™ Load Management modules when in-line relays are required to start/stop appliances larger than 5 amps. Available for 30 and 50 amps, with one or two relays per box.
Specifications
| Switch Current Ratings | 100 amps, 2 pole
utility and 100 amps, 2 pole generator 24kW max (ATS1001D, ATS1001R) 200 amps, 2 pole utility and 125 amps, 2 pole generator 30kW max (ATS2001D, ATS2001R) 200 amps, 2 pole utility and 200 amps, 2 pole generator 50kW max (ATS2002R) |
|
| Voltage Rating | 120/240V, 1 phase, 60Hz standard (50Hz optional) | |
| Branch Circuit Space | 14 full height breaker poles
(ATS1001D) 16 full height breaker poles (ATS1001R) 38 full height breaker poles (ATS2001D, ATS2001R) 4 full height breaker poles (ATS2002R) |
|
| Control Features (see note 1) KEY: P.U. = pickup D.O. = dropout |
Function | Factory Setting |
| start time delay | 5 sec, (adjustable 5 sec to 60 min) | |
| transfer time delay | 10 sec | |
| retransfer time delay | 60 sec | |
| cool down delay | 300 sec | |
| voltage sensing of utility | 204V to 270V P.U. <190V or >280V D.O. |
|
| frequency sensing of utility | 57 to 63Hz P.U. <54 or >66Hz D.O. |
|
| voltage sensing of generator | 204V to 270V P.U. <190V or >280V D.O. |
|
| frequency sensing of generator | 57 to 63Hz P.U. <54 or >66Hz D.O. |
|
| Exerciser Clock | field adjustable for 7, 14, 28 day exercising with or without load transfer | |
| Lug Capacity (max) | 2/0 AWG CU/AL
(ATS1001D, ATS1001R) 300 MCM CU/AL (ATS2001D, ATS2001R, ATS2002R) |
|
| UL Withstand & Closing Ratings | 10,000 amps (22,000 amps optional) | |
| Nominal Dimensions (H x W x D) | 24" x 14.31" x
3.93" (ATS1001D), 28" x 14.5" x 4.25" (ATS1001R) 42" x 14.31" x 3.93" (ATS2001D), 41" x 14.5" x 4.25" (ATS2001R) 23.5" x 18.5" x 4.25" (ATS2002R) |
|
| Weight | 27 to 46 lbs. depending on model | |
| Warranty | 2 year factory warranty | |
NOTES:
1) The start time delay prevents nuisance generator starts during momentary utility power variations; transfer time delay allows generator set to stabilize before load is applied; retransfer delay prevents needless power interruption if return of utility power is momentary; stop delay allows gradual generator set cool down; undervoltage sensing of utility supply provides reliable starting of generator set during brownout conditions.
2) This switch is service entrance rated. This generally means that you do not need another service entrance rated disconnect between this switch and your utility meter.
100A indoor, 24kW gen max, 14 branch spaces PowerPause load mgmt module, (2)5A circuits
Item Number: ATS1001D
Price: $656
Price last updated 3/31/2010
Shipping Weight: 28 lbs.
This item normally ships in approximately 1 week or less.
Item Number: LSM
Price: $97
Price last updated 3/31/2010
Shipping Weight: 1 lbs.
This item normally ships in approximately 1-2 weeks or less.
100A outdoor, 24kW gen max, 16 branch spaces
PowerPause relay box, (1)30A circuit
Item Number: ATS1001R
Price: $688
Price last updated 3/31/2010
Shipping Weight: 27 lbs.
This item normally ships in approximately 1 week or less.
Item Number: PP30-1
Price: $154
Price last updated 3/31/2010
Shipping Weight: 7 lbs.
This item normally ships in approximately 1-2 weeks or less.
200A indoor, 30kW gen max, 38 branch spaces
PowerPause relay box, (2)30A circuits
Item Number: ATS2001D
Price: $873
Price last updated 3/31/2010
Shipping Weight: 44 lbs.
This item normally ships in approximately 1 week or less.
Item Number: PP30-2
Price: $216
Price last updated 3/31/2010
Shipping Weight: 8 lbs.
This item normally ships in approximately 1-2 weeks or less.

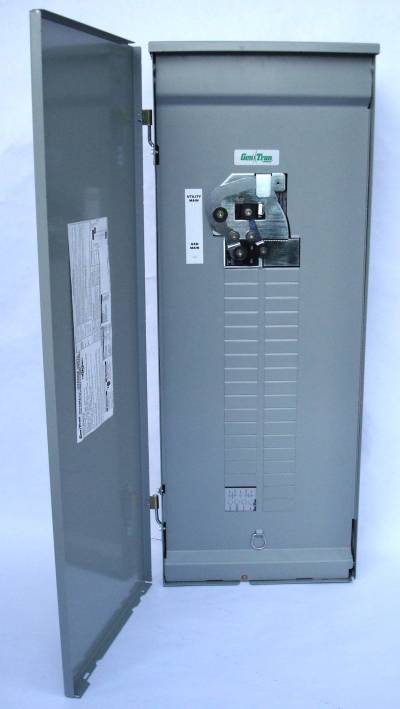

200A outdoor, 30kW gen max, 38 branch spaces
PowerPause relay box, (1)50A circuit
Item Number: ATS2001R
Price: $937
Price last updated 3/31/2010
Shipping Weight: 40 lbs.
This item normally ships in approximately 1 week or less.
Item Number: PP50-1
Price: $188
Price last updated 3/31/2010
Shipping Weight: 8 lbs.
This item normally ships in approximately 1-2 weeks or less.
200A outdoor, 50kW gen max, 4 branch spaces
PowerPause relay box, (2)50A circuits
Item Number: ATS2002R
Price: $1,108
Price last updated 3/31/2010
Shipping Weight: 23 lbs.
This item normally ships in approximately 1 week or less.
Item Number: PP50-2
Price: $266
Price last updated 3/31/2010
Shipping Weight: 9 lbs.
This item normally ships in approximately 1-2 weeks or less.
