Large Hydroelectric Generators

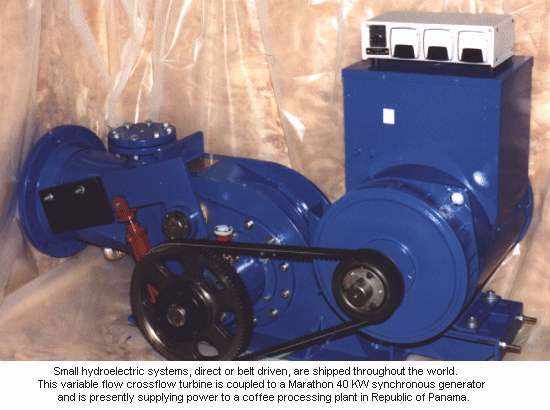

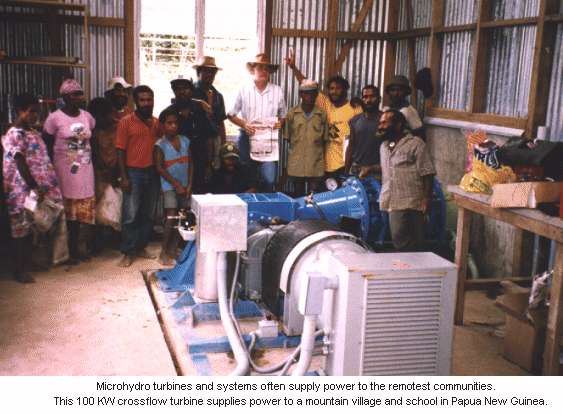

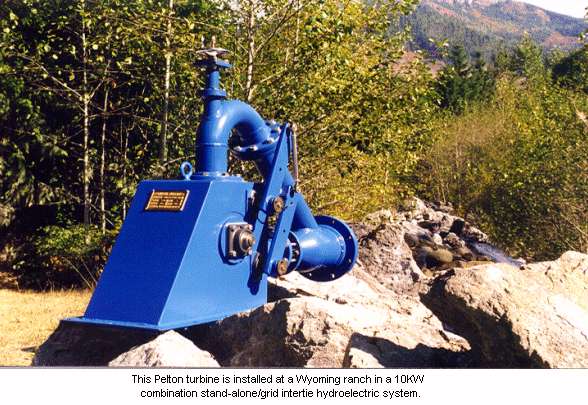

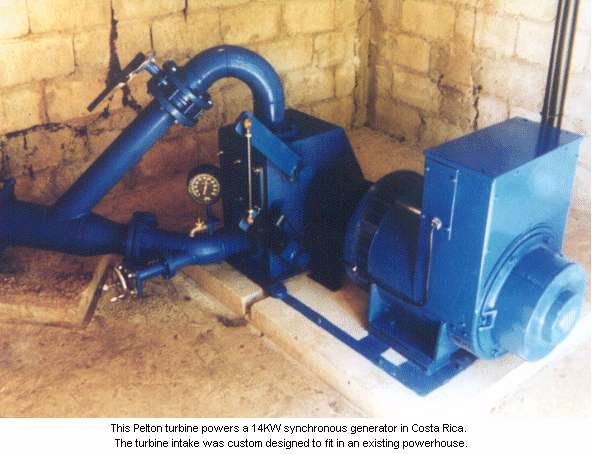

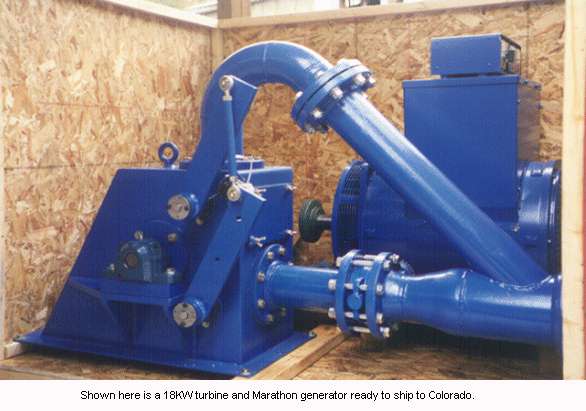

click thumbnail image above to enlarge

Large Hydroelectric Turbine Generators

BECAUSE OF POOR CUSTOMER SERVICE AND
UNRESPONSIVENESS OF CANYON INDUSTRIES
WE NO LONGER OFFER THESE LARGER HYDROELECTRIC SYSTEMS

We offer these larger hydroelectric systems from Canyon Industries.   Sizes start at about 3kW and are available to 1 MW and larger.  These are custom designed to your site parameters and consist of ac generators driven by pelton turbines.  The system can be designed for off-grid independent operation or to be tied to the grid to sell back any excess electricity to your local power utility.

A typical system consists of a pelton turbine with one or more nozzles, ac brushless generator, belt or direct drive, 50Hz or 60Hz single phase or three phase output, 120/240VAC or higher, frequency protection and load management controller/governor.  Typical factory lead times are 6-10 weeks after complete technical data for site is submitted with order.

To estimate power output of your hydro site read our Hydroelectric information page and use the online output calculator or click the thumbnail image below:

Keep in mind that a system will cost less per kW for higher head sites rather than higher flow.  Example pricing for stand-alone systems rated at 120/240VAC 60Hz 1800 rpm direct-drive brushless alternator single nozzle pelton turbine designed for a 6" pipeline with frequency protection, load management controller and governor are as follows:

* 20kW, 450 ft dynamic head, approx $12,000.

* 25kW, 550 ft dynamic head, approx $13,000.



[FrontPage Save Results Component]

Large Hydroelectric Generator Quote Request Form
(THIS FORM IS NOT CURRENTLY FUNCTIONAL)
Note that fields other than drop-down lists are free-format which means you can enter any combination of values or text as necessary.  You will need to enter something in all fields labelled req'd.  If you are unable to use this quote form click here for a text version which you can paste into an e-mail message to send to us.

SHOW UNITS WITH ALL VALUES!
(gpm, l/s, ft, m, mi, km, psi, etc.)

NOTE: req'd means that this data must be filled in to obtain a quote

  STREAM CHARACTERISTICS:

1.	Available flow rate	req'd
2.	Design flow rate
3.	Static head at no flow	req'd
4.	Length of pipe
5.	Diameter of pipe
6.	Dynamic Head with flow
7.	Height of dam
8.	Is dam already built?	select... No Yes Under construction
9.	Surface area of pond behind dam

  ELECTRICAL CHARACTERISTICS:

10.	Interface	select... stand alone grid independent grid tied - not operable during blackout req'd
11.	Voltage	req'd
12.	Frequency	select... 60Hz 50Hz other, see comments req'd
13.	Phases	select... single phase three phase req'd

  STAND ALONE GRID INDEPENDENT DETAILS:

14.	Length of transmission line
15.	Electrical needs including hp of single largest motor

  GRID TIE DETAILS:

16.	Distance to utility power lines
17.	Name of utility company
18.	What is your present power source?
19.	What is cost of your present power source?

  OTHER INFORMATION:

20.	Number of hydro systems required	req'd
21.	New or replacement?	select... new replacement req'd
22.	Target installation date	req'd
23.	Project installation & completion certainty	select... very certain 50-50 chance uncertain see comments req'd
24.	Comments & other requirements	None

  CONTACT INFORMATION:

25.	Your name	req'd
26.	Title
27.	Company
28.	Address	req'd
29.	City, state zip	req'd
30.	Country	req'd
31.	Site location if different
32.	Phone & Fax numbers	req'd
33.	e-mail address (enter none if none)	req'd
34.	Enter Security Code:	req'd

If a thank you screen doesn't appear after pressing the Submit button below send us an e-mail message.  Click here for a text version of this form which you can paste into an e-mail message to send to us.
