TW-SMWT-5000
NO LONGER AVAILABLE
FROM NoOutage
|
|
|
|
|
| 33' tower with SkyStream | 33' & 50' tower drawings | tilt-up gin pole | permanent hinge plate | transporting |
|
click thumbnail image above to enlarge |
||||
50' Stackable Monopole Wind Tower
for SkyStream Generators
The patent pending TEC-WIND Stackable Wind Tower is a segmented design that allows you to build the wind tower one section at a time on the ground and raise it safely and easily. This eliminates expensive equipment rentals saving time and money.
Flexible Innovative Design

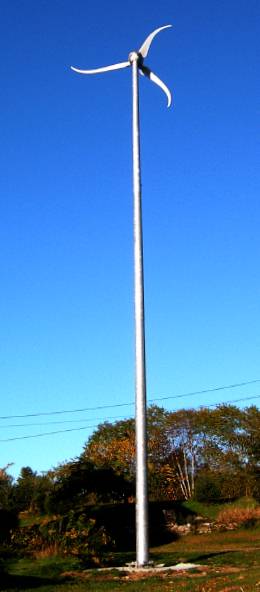

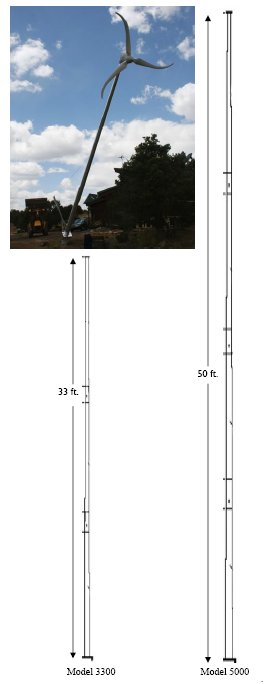

The Tec-Wind Tower is available in either a 33 foot model for height restricted areas and 50 foot model to capture the wind over most homes. The modular design makes it easy to deploy into remote areas and easy to add soundproofing to each section. The flexibility of the system allows sections to be modified or added to the design to make it 40, 45 or higher than 50 ft. as new sections are designed.Easy Shipping and Handling

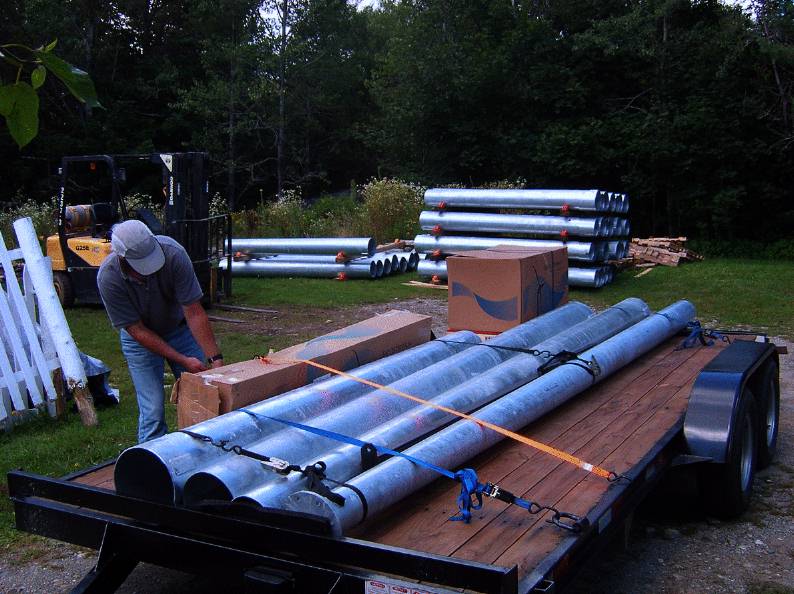

Each section nests within the other to make a compact shipping arrangement. Besides savings on freight charges this design allows you to easily manipulate each section off the delivery truck and to the worksite.No Heavy Equipment Needed

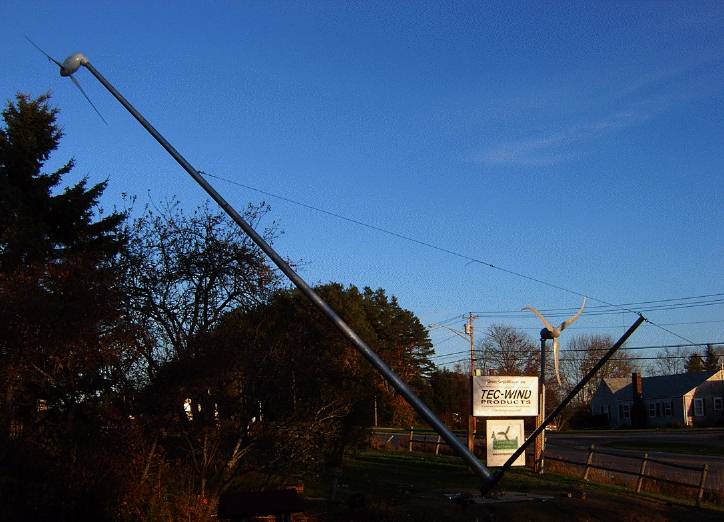

Each section can be easily moved to the base foundation allowing each tower section to be stacked onto the next section with only 2 men. Once the turbine is installed the tower can be lifted with a truck or winch and a gin pole. All you need is 2 men and a truck!Features and Benefits:
* Approved for use with the Skystream Wind Generator
* Exceeds DOT Specifications and Conforms to ASSHTO
* Rated for 140MPH winds with gusts to 182MPH
* Nested design for shipping saves on freight charges
* Easily deployed into remote areas
* No heavy equipment needed for raising or handling* Easily installed with 2 men and a pickup truck
* No guy wires makes a safe attractive installation
* Available in 33 foot length for height restricted sites
* 50 foot tower to capture the wind over most homes
* Available Lift kit raises the tower with a winch or truck
Tower Specifications: Models 3300 and 5000
* Patent Pending Segmented Design
* Bolted Slip joint Connections
* 17” Bolt Pattern Base Plate

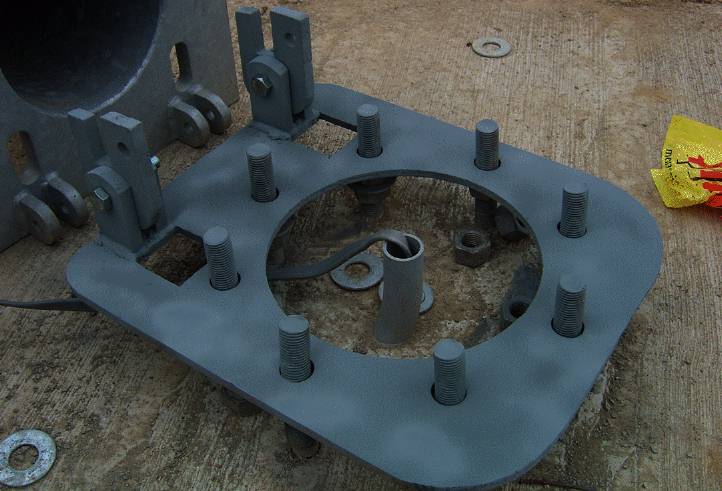

* Hinge Mate Base Plate (Mates with lift Kit)
* 1 1/4” Anchor Bolts
* Skystream Flange on Top Section
* ASTM Galvanized A123 for tower
* ASTM Galvanized A153 for hardware
* Exceeds DOT specifications
* Rated to 140 MPH and gusts to 182 MPH
