HUPS51255K

[ Home ] [ Up ] [ Contents ] [ Search ] [ Catalog ]

Page last updated 04/17/08


hups5125front.jpg (46702 bytes) hups5125front4ebm.jpg (51531 bytes) hups5125frontopen.jpg (86083 bytes) hups5125rear.jpg (55097 bytes) hups5125conn.jpg (41670 bytes)
front view
with
1 optional
battery module		 front view

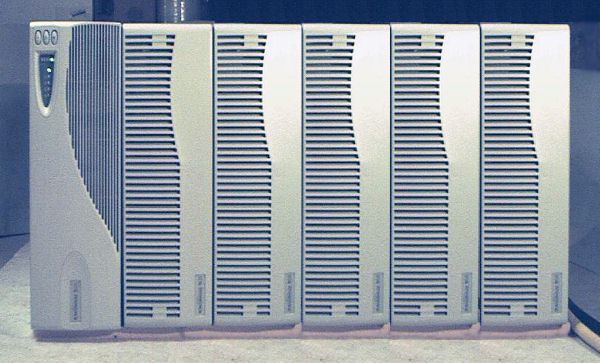

with max
4 optional
battery modules		 front view
covers off		 rear cable
connections
(it is simpler
than it looks)		 system
diagram

Click thumbnail image above to enlarge.  Tower mounting configuration shown.

House UPS System
5000VA/4500 watt, 120/240VAC



Our House UPS systems fill a market niche between portable generators and automatic standby generators.  Most power outages last less than a couple hours and these systems easily provide backup AC power for that length of time.  These systems are silent and fully automatic and transfer extremely fast when line power is lost.  No more guessing how long an outage will last and whether it is worth the trouble to drag out that portable generator.  For most outages which are short this system eliminates that trouble!

For details about how this system operates and its advantages click here.



What is included in the NoOutage.com House UPS System?

We provide everything you need to install an operational system except for one circuit breaker that must be installed in your load center breaker panel and a connected wall outlet.  If you want to be able to provide backup power for a long-term power outage you will also need a portable generator (not included).  System includes the following:

* UPS Module
* Output Transformer
* Maintenance bypass switch
* Transfer Switch - 10 circuit
* interconnecting AC jumper cables
* AC Input Cord - 25' with NEMA L1430P Plug
* AC Output Cord with NEMA L1430C Connector
* interconnecting battery jumper cables
* gel cell maint-free lead acid batteries (in UPS)
* battery charger (in UPS)

We do not provide the circuit breaker for your load center panel due to the many brands of panels.  Purchase one locally that fits your panel.  It should be rated 30 amps.  Your installer will also need to wire this breaker to a 30A 120/240VAC NEMA L1430R wall receptacle near the UPS.



What if I already have a generator transfer switch?

We can sell you this House UPS System without the transfer switch at a cost savings to you.  However, be sure you have the correct type of switch.  It MUST be a 120/240VAC multi-circuit transfer switch with inlet for cord on front similar to the Gen/Tran, Pro/Tran or Coleman models below.  These switches allow you to INDIVIDUALLY transfer household circuits one at a time to the generator.  Some switch and panel models (usually the type that have molded case circuit breakers) are not suitable because you have to transfer ALL circuits to the generator.  Click any of the underlined model numbers to see details.

Acceptable Acceptable Acceptable NOT Acceptable NOT Acceptable
Gen/Tran
20216
30216
302110
F20216
F30216
F302110		 Pro/Tran
20216A
30216A
30508B
30310A
F20216B
F30216B
F30508B
F30310B		 Coleman
PA0650080.01
PA0650081		 Eaton
Cutler-Hammer
CH6EGEN
CH10EGEN

Square D
QO48M

 Gen/Tran
200660
301060
501060

Panel/Link
TR...
TT...



System Specs

System AC Line Input Voltage 240VAC nominal (160-288VAC limits)
System AC Line Input Frequency 60Hz +4Hz
AC Line Circuit Capacity 30 amps 240VAC recommended
20 amps 240VAC minimum (if load is limited)
Portable Generator Size (optional) 7500 Watts rated w/ 30 amp 240VAC receptacle and voltage regulator (recommended)
5000 Watts rated w/ 20 amp 240VAC receptacle (minimum) - see NOTE 1
System DC Voltage & Battery Bank - see NOTE 3 240 VDC nominal
(20) 12V 7.2Ah internal batteries
(20) 12V 9.0Ah batteries per external module
Inverter Power Output Rating 5000VA / 4500 Watts continuous
5500VA / 5000 Watts surge for 2 minutes
>5600VA / >5100 Watts for 0.2 seconds
will start 3/4hp well pump motor - see NOTE 2
System output voltage (on inverter) 120/240VAC +5%
pure sine wave
<7% THD with typical power factor load
Automatic Transfer Time 4 milliseconds typical
System efficiency 95%
Approximate Battery Run-Time
See NOTE 4		 internal battery only 500VA/450 watts average
1000VA/900 watts average
2000VA/1800 watts average		 2.2 hours
1.5 hours
0.7 hours
1 optional external battery module 500VA/450 watts average
1000VA/900 watts average
2000VA/1800 watts average		 6.5 hours
2.8 hours
1.3 hours
2 optional external battery modules 500VA/450 watts average
1000VA/900 watts average
2000VA/1800 watts average		 11.6 hours
5.0 hours
2.3 hours
3 optional external battery modules 500VA/450 watts average
1000VA/900 watts average
2000VA/1800 watts average		 17.3 hours
7.5 hours
3.4 hours
4 optional external battery modules 500VA/450 watts average
1000VA/900 watts average
2000VA/1800 watts average		 23.5 hours
10.2 hours
4.5 hours
Battery Charger Rating 3-5A at 240Vdc nominal (approx 1000 watts)
Approximate Battery Recharge Time Internal battery: 3 hours to 80% usable capacity
External Batteries: no more than 15X discharge time
Indicators (red/green/flash/audible alarm) - Power On LED
- Site wiring fault LED
- Battery Service LED
- On Battery LED
- General Alarm LED
- Load Level LEDs (5)
Communication Ports
(work with included LanSafe software)		 - USB port with cable
- DB9 Communication port with cable
Surge Suppression
(active in both normal and bypass modes)		 ANSI C62.41 Category B3
EN 61000-4-5 Level 3, Criteria B
Audible Noise (UPS module) <45dbA normal mode with typical load
<50dbA in battery mode
Environmental Ratings 10C to 40C operating (25C optimal for batteries)
-25C to +55C transient
5% to 95% relative humidity, non-condensing
2,000 meters elevation above sea level max
System will function at reduced performance outside the operating range.
Dimensions & Weights
(all are 3U 5.25" H x 17.5" W)		 - UPS module 26" D, 161 lbs
- transformer module 26" D, 106 lbs
- optional battery modules 26" D, 169 lbs
Warranty by Manufacturer - 2 years parts & labor
- 10 years pro-rated
Certifications

UL Listed, cUL, CE
NOTES:
1 - Oversized generators with automatic voltage regulators work best.  UPS test did work with small 5000 watt generator with no voltage regulator after raising UPS voltage to 240V and pre-loading generator with 1500 watts.
2 - Tested using typical 3/4hp 230Vac single phase well pump motor with UPS internal batteries fully charged and at approx 70F (no optional external battery modules).
3 - Under normal conditions batteries should last at least 3-5 years.  Replacement batteries are available and can be installed by user.
4 - Battery run-time is not linear.  At half the stated electrical load the run-time will be MORE than double the original value.



Optional Features available at additional cost

The following optional features can be ordering using the drop-down menus at the bottom of this page.  Click thumbnail images at right to enlarge.

External extended run-time battery module.  Up to 4 maximum can be added to UPS system.  Each module has short DC plug cord and connector on back to allow daisy-chaining together.

System can normally be mounted in tower configuration (each module on its left side).  Cabinet for horizontal rack mounting of system is also available.  Comes in two sizes: 20 units of space for mounting 5 modules or 24 units of space for mounting 6 modules.  Mounting rails included.

X-Slot SNMP/Web Adaptor Card for management of UPS through web interface.  UPS comes standard with software and serial cable but if you prefer remote control and monitoring through the web this card will do it.  Fits in X-slot in rear.  Includes built-in switch hub.

X-slot Relay Interface Card provides dry contact interface between UPS and any external contact operated device.  Individual form-C contacts provided for many UPS status conditions including utility failure, low battery, UPS alarm/Ok, or on bypass.  Can be used to initiate start of standby generator or to perform other external control functions.






Item Number: HUPS51255K
Your Price: $3,909.00
Shipping Weight: 330 lbs.
This system can be shipped direct to you with free freight (to USA 48 state destinations).  Due to their weight the UPS, transformer and optional external battery modules ship by truck freight.  Two people are required to unload truck. This system normally ships 1-2 weeks after order acceptance.

switch:
external batteries:
x-slot card:
mounting:
